Specifications


Wide Range of Specifications to Meet Your Requirements

Various Sizes

The product is produced in standard 3' and 4' lengths. They are easily combined to reach any length greater than 5'. The boxes come in a variety of depths and widths between 12" and 30".

Fiber Composite and Steel Covers

Fiber reinforced composite covers are heavy duty and lightweight, but standard 1/4" and 3/8" steel plates are also available. We have the covers you need for both high-end and economical projects.



Durable and Resistant Material

Galvanized or Stainless steel options make the trench durable and resistant to the elements. Versa Trench is an optimal solution for both indoor and outdoor applications.


Choose your box design, then choose your cover design


Box Designs:



Straight Box Design

For easy installation

  • 18 different sizes
  • 3' or 4' lengths, allowing for any distance greater than 5'
  • The trench will never be deeper H(ID) than it is wide ID for accessibility reasons
    • H is the maximum height of the trench box
    • ID is the maximum usable width for the pipe installation
    • Wc is the width of the cover
    • W is the maximum width of the trench box

Intersection Box Design

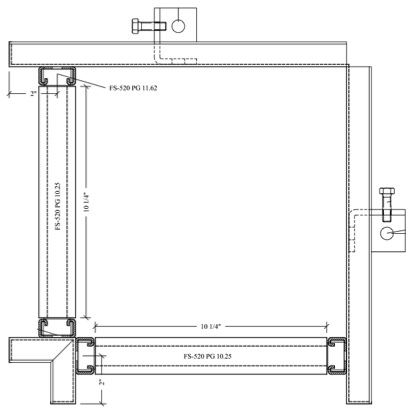

L-Intersection (Top View)

  • Designed for making a 90 degree turn in any direction quick and easy
  • The flanges bolt onto the straight sections
  • Comes in two side panels, two horizontal braces, and two pipe supports

T-Intersection (Top View)

  • Designed for the most versatile situations
  • Only available in 90 degree turns, but wide enough to make 45 degree turns inside
  • Comes in three side panels, six horizontal braces, and three pipe supports

X-Intersection (Top View)

  • Designed for the most versatile situations
  • Fit the trench in any direction and only available in 90 degree turns, but wide enough to make 45 degree turns inside
  • Comes in four side panels, eight horizontal braces, and four pipe supports

Cover Designs:

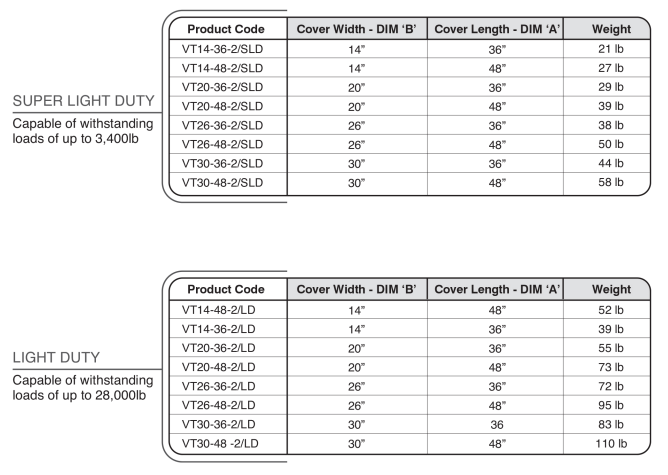

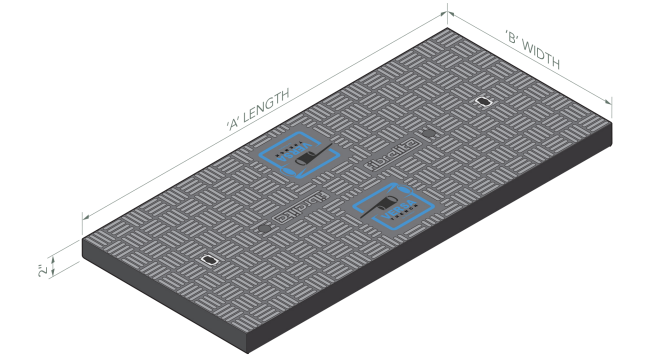

Fiber Composite Cover

Great for high-end projects

Steel Plate Cover

Available in plain or powder coated.

3/8" or 1/4" thicknesses available in the same lengths as the fiber composite cover.
